Surface mounting

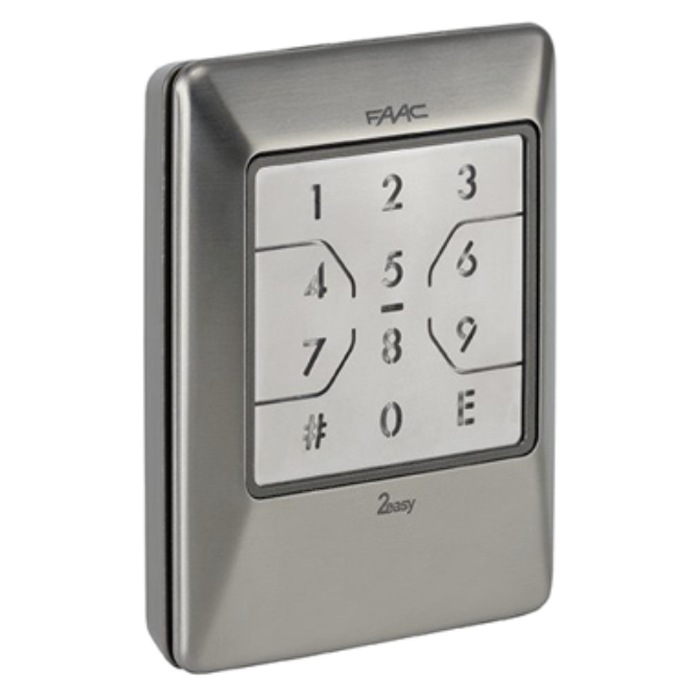

This keypad can be mounted on any flat surface - eg. on the wall, without using of additional accessories.
Surface mounting - with an adapter 401064
If you would like to install this keypad on any flat surface and connect it through the installation pipes, then you should purchase an adapter FAAC 401064. With this adapter you will gain space to hide cables under keypad. Although the keypad is wireless, there may be a need to hide the old cables under it.
Flush mounting - with an adapter 401065
To realize flush mounting installation, you must purchase the FAAC 401065 adapter.
Column mounting - with an adapter 401065
To mount this keypad on FAAC posts/columns, the FAAC 401065 adapter must be purchased.
| Connection type | Wireless |
|---|---|
| Frequency | 433 MHz - FAAC SLH |
| Number of supported devices | 4 |
| Operating mode | Impuls |
| Backlit keypad | ✔ |
| Power supply | 2 x CR2450 |
| Housing | Plastic and INOX (stainless steel) |
| Protection rating | IP54 |
| Operating temperature | -20°C ÷ +55°C |
| Dimensions | 72 × 100 × 21 mm |
| Batteries | ✔ Included in delivery |
